INDUSTRIAL HOSE AND FITTINGS

We supply a wide range of industrial hoses and fittings designed for reliable operation in demanding industrial environments. Our product range includes hoses for air, water, oil, fuel, chemicals, and abrasive materials, as well as compatible fittings, couplings, and connectors to ensure secure and leak-free connections.

Sealing ring used to prevent leaks between flanged connections in pipelines. Types: • Rubber / Silicone / PTFE - For chemical and temperature resistance • Metal / Spiral Wound - For high-pressure, high-temp applications • Standard & Custom Sizes - Available for various flange

Ring Gasket

Sealing ring used to prevent leaks between flanged connections in pipelines. Types: • Rubber / Silicone / PTFE — For chemical and temperature resistance • Metal / Spiral Wound — For high-pressure, high-temp applications • Standard & Custom Sizes — Available for various flange

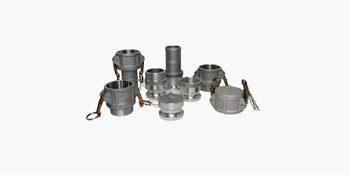

Quick-connect couplings for fast and secure hose or pipe connections without tools. Type A-F, Dust Cap and Plug - Standard configurations Aluminum / Stainless Steel / Brass / Polypropylene -Material options Sizes from 1/2" to 6" - For various flow requirements

CAMLOCKS

Quick-connect couplings for fast and secure hose or pipe connections without tools. Type A-F, Dust Cap and Plug — Standard configurations Aluminum / Stainless Steel / Brass / Polypropylene -Material options Sizes from 1/2″ to 6″ — For various flow requirements

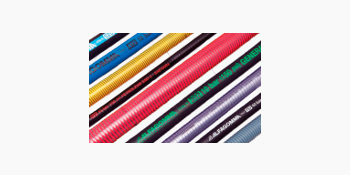

Flexible hoses for air, water, oil, chemicals, and other industrial fluids. Types: • Air and Water Hose - General-purpose use • Oil and Fuel Hose - Resistant to petroleum products • Chemical Hose - For aggressive media Steam Hose - High temperature and pressure

Industrial Hose

Flexible hoses for air, water, oil, chemicals, and other industrial fluids. Types: • Air and Water Hose — General-purpose use • Oil and Fuel Hose — Resistant to petroleum products • Chemical Hose — For aggressive media Steam Hose — High temperature and pressure

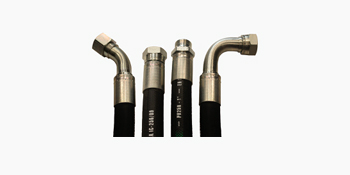

Flexible and durable hoses designed for high-pressure fluid transmission in hydraulic systems. Available in various types for different pressure levels and applications: R1AT/R2AT-for medium to high pressure 4SP/4SH - for very high pressure R12/R13/R15 - for heavy-duty use Thermoplastic - lightweight and corrosion-resistant PTFE - heat and chemical resistant

Hydraulic Hoses

Flexible and durable hoses designed for high-pressure fluid transmission in hydraulic systems. Available in various types for different pressure levels and applications: R1AT/R2AT-for medium to high pressure 4SP/4SH — for very high pressure R12/R13/R15 — for heavy-duty use Thermoplastic — lightweight and corrosion-resistant PTFE — heat and chemical resistant

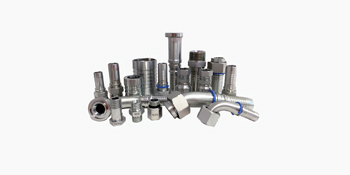

Connectors for secure and leak-free hose-to-hose or hose-to-machine connections in hydraulic systems. Types: BSP /NPT / J IC / ORFS / Metric - Thread standards Straight / Elbow/Tee/Cross-Shape options Crimped & Reusable - For different assembly needs Carbon Steel / Stainless Steel / Brass - Material options

Hydraulic Fittings

Connectors for secure and leak-free hose-to-hose or hose-to-machine connections in hydraulic systems. Types: BSP /NPT / J IC / ORFS / Metric — Thread standards Straight / Elbow/Tee/Cross-Shape options Crimped & Reusable — For different assembly needs Carbon Steel / Stainless Steel / Brass — Material options

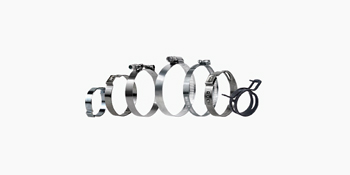

Durable clamps used to secure hoses onto fittings or pipes, ensuring leak-proof connections.Types: Worm Drive Clamps - Adjustable, common for general use Т-Bolt Clamps- For high-pressure applications Ear Clamps - Permanent, compact design Spring Clamps - Quick and tool-free installation

Hose Clamps

Durable clamps used to secure hoses onto fittings or pipes, ensuring leak-proof connections.Types: Worm Drive Clamps — Adjustable, common for general use Т-Bolt Clamps- For high-pressure applications Ear Clamps — Permanent, compact design Spring Clamps — Quick and tool-free installation

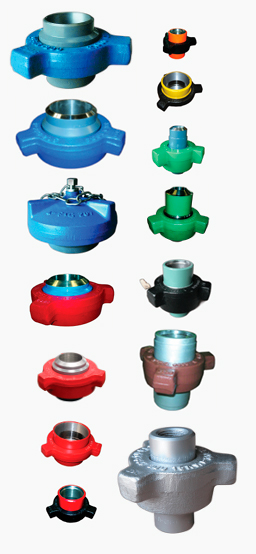

Hammer Union

Construction

  • Hammer Nut — tightened with a hammer
  • Male Sub — with external threads or butt-weld
  • Female Sub — threaded or socket end
  • Seal — elastomer (NBR, Viton) or met-al-to-metal

Sizes Available

  • From 1″ to 6″ (25 mm -150 mm)
  • Pressure Ratings
  • From 1,000 to 15,000 psi, depending on the figure type

Materials

  • Forged carbon steel
  • Stainless steel (available upon request)
  • Seals: NBR, HNBR, Viton, PTFE

Construction

  • Hammer Nut — tightened with a hammer
  • Male Sub — with external threads or butt-weld
  • Female Sub — threaded or socket end
  • Seal — elastomer (NBR, Viton) or met-
FigurePressureColorApplication
Fig. 501,000 psiBlackLow-pressure, vacuum lines
Fig. 1002,000 psiRedGeneral-purpose fluid transfer
Fig. 2002,000 psiBlueMud and manifold systems
Fig. 2062,000 psiGreenButt-weld connections
Fig. 4004,000 psiYellowMedium-pressure drilling systems
Fig. 6026,000 psiGreyAcidizing, cementing
Fig. 100210,000 psiOrangeHigh-pressure well service
Fig. 150215,000 psiRed/BlueFracturing, high-pressure applications

All products are manufactured in accordance with industry standards and selected for high pressure resistance, durability, and long service life. Our solutions are suitable for use in construction, manufacturing, energy, mining, and infrastructure projects. We provide technical support to help select the appropriate hose assemblies and fittings based on operating conditions, pressure ratings, and application requirements.

With dependable supply chains, competitive pricing, and timely delivery, we support continuous and efficient operation of your industrial systems.
